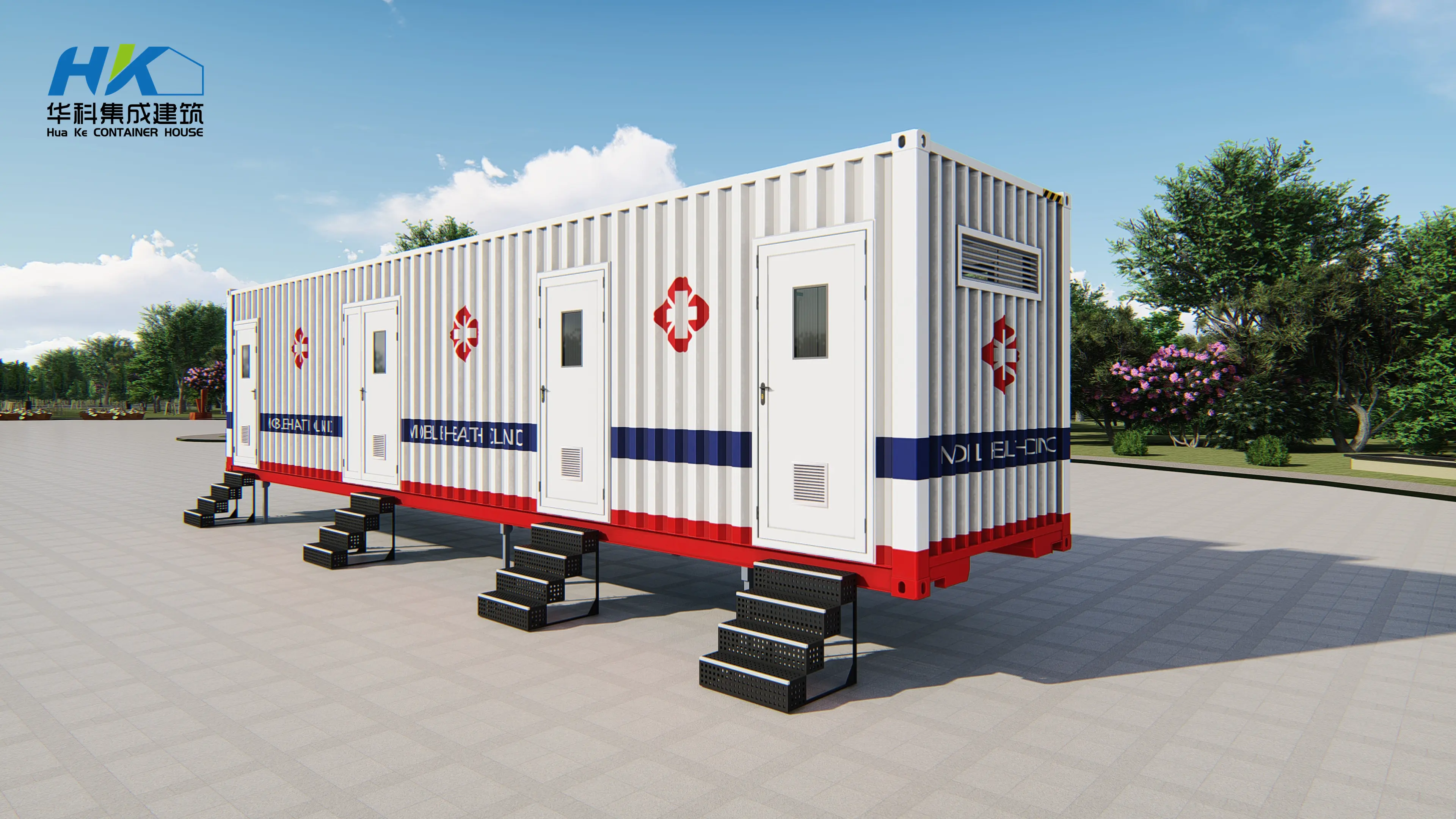

This 40ft X 8ft X 8ft6 container clinic is designed based on ISO shipping container corner standards, delivering optimal transport volume and cost-effective global deployments for medical treatment shelters.
Material: 1.6mm corrugated steel with metal stud post and 75mm inner rock wool insulation; PVC board fitted to all sides.

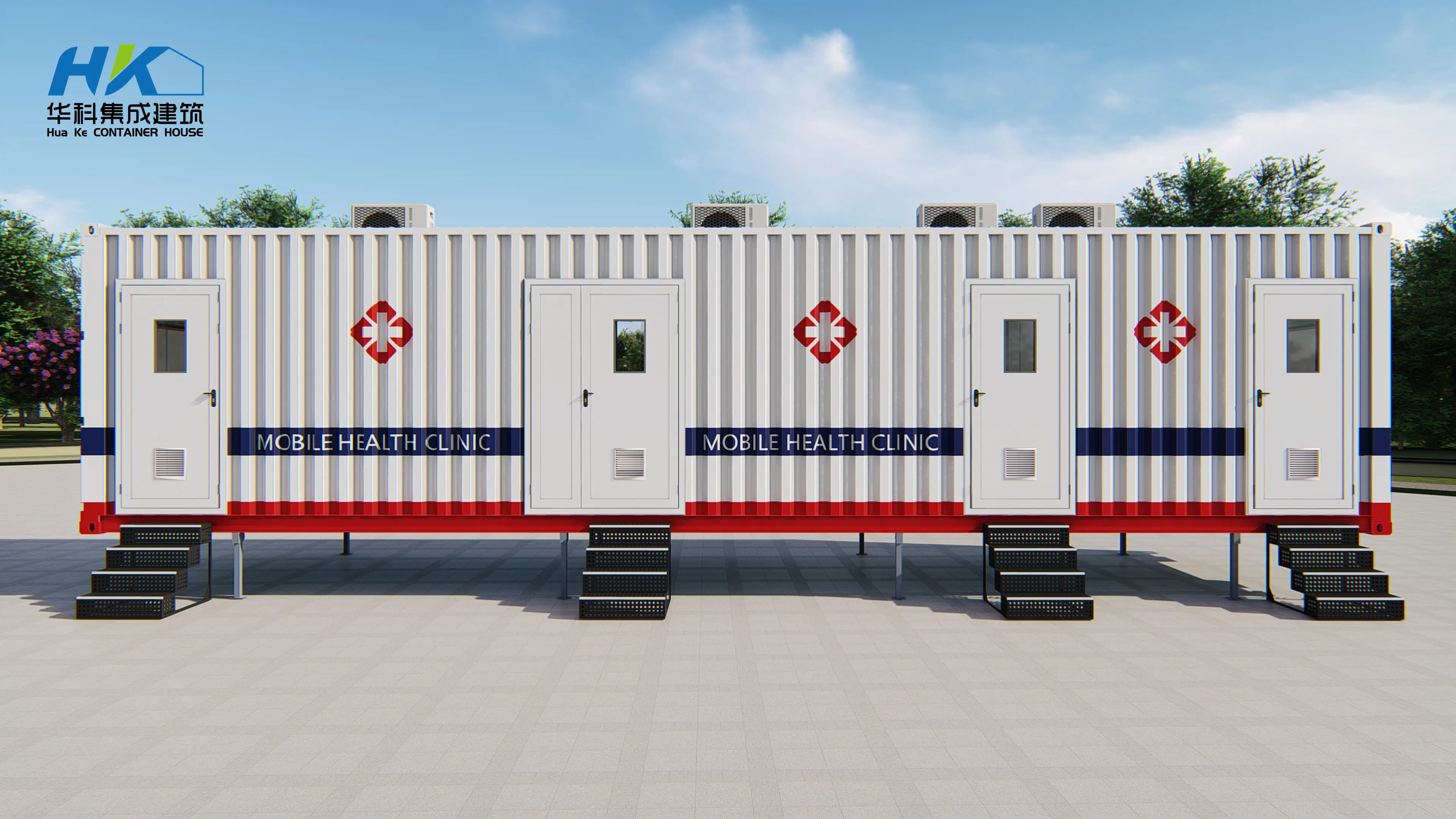

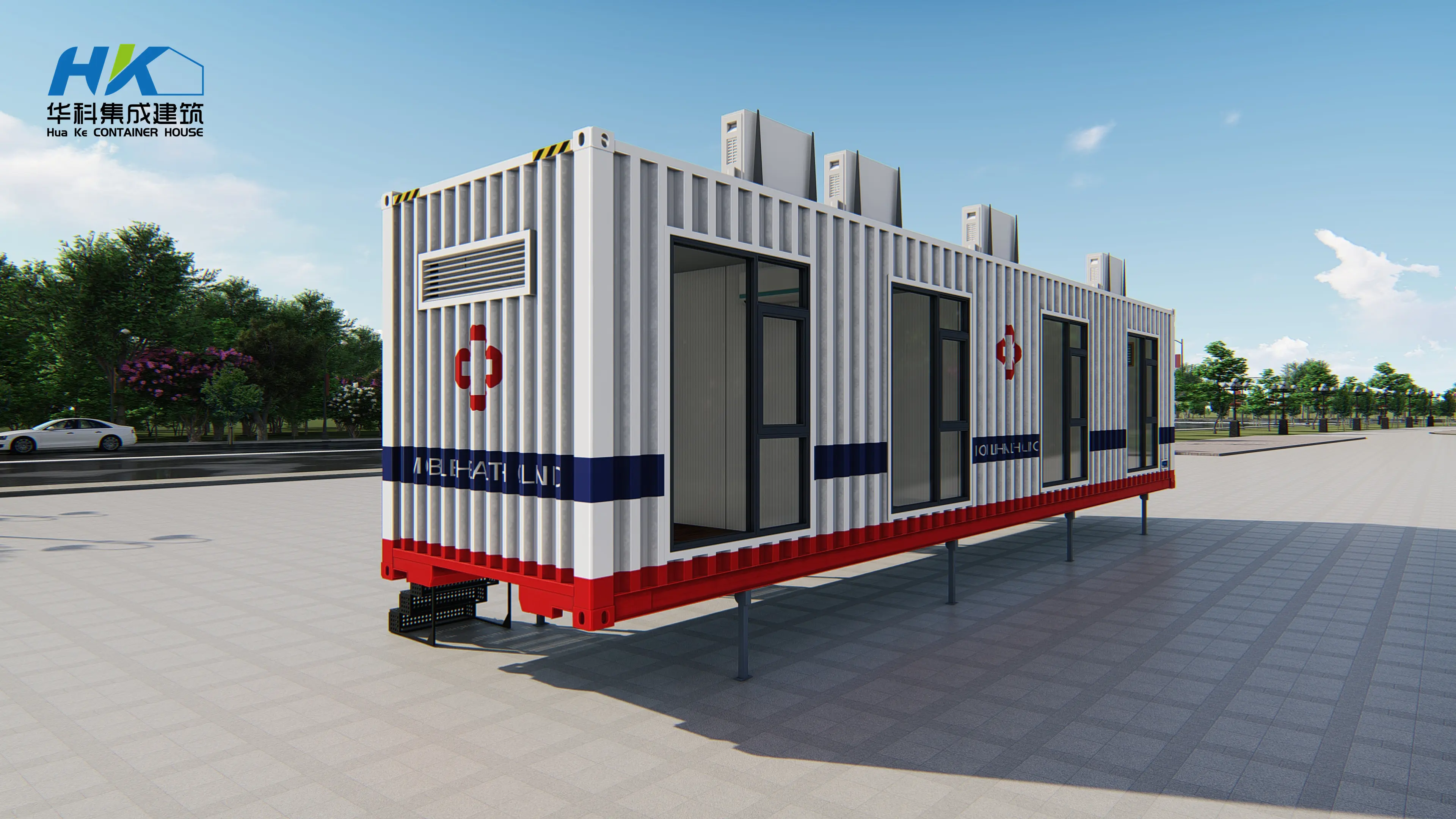

Design includes one central reception and 3 separate rooms according to the floor plan.
All rooms are equipped with Air-conditioners for climate control.

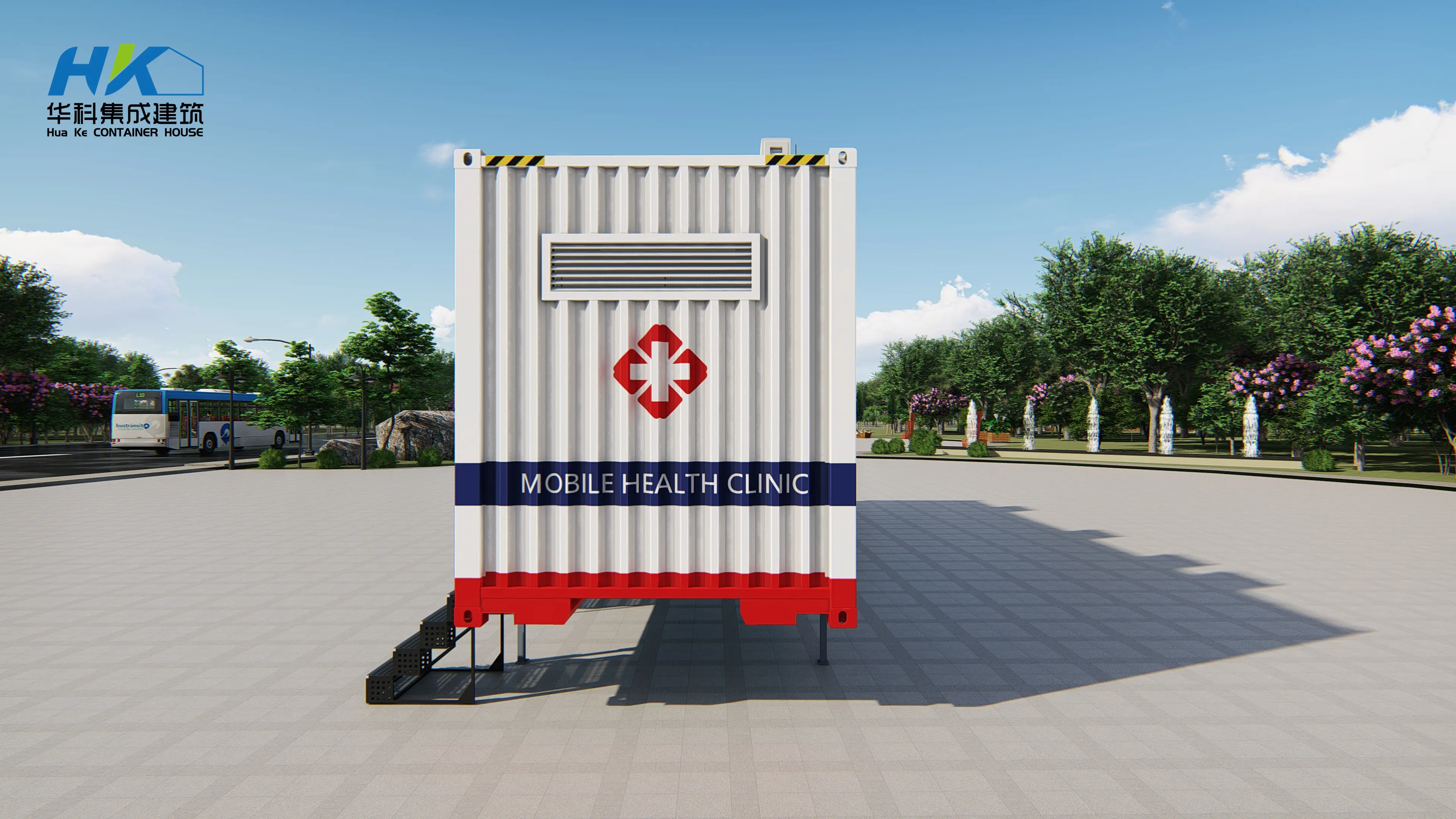

The reception center features a double open door, sized according to specific requirements.
Windows: 1.5m X 2m insulated windows with double-layer tempered glass (5+12+5mm spec).
Flooring: 2mm PVC covering for durability and hygiene.
Ventilation: 1ft wide, 4ft long ventilation on both back sides.

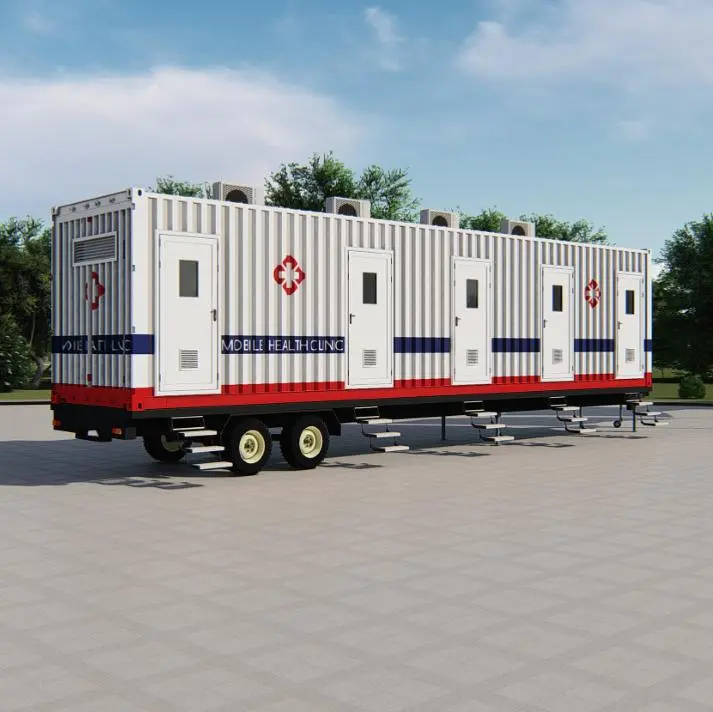

Structure: 2ft from ground standings.
